GUNS patrol launches (2006)
Malan 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MS111 گنس [Guns] MS112 سر [Sur] MS113 مالان [Malan] |
KSEW, Karachi: MS111-113 |
2006: MS111-113 |
none |
none |
in service (2019): MS111-113 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 13.0 |
| Breadth, m | 3.65 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Yamaha ME730TIL diesels |
| Power, h. p. | 635 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | JRC 1500 radar |
| Complement | 6 |
Graphics

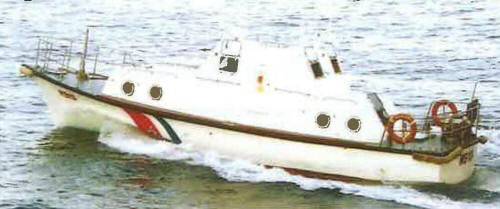

Malan 2006
Project history
GRP construction. Maritime Security Agency.
Modernizations
None.
Naval service
No significant events.
