BARKAT patrol craft (1989-1990)
Vehdat 1994
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| برکت [Barkat] | P60, later- 1060 | Huangpu, Guangzhou, China | 21.10.1988 | 29.12.1989 | in service (2019) | ||
| رحمت [Rehmat] | P61, later- 1061 | Huangpu, Guangzhou, China | 21.10.1988 | 29.12.1989 | in service (2019) | ||
| نصرت [Nusrat] | P62, later- 1062 | Huangpu, Guangzhou, China | 13.6.1990 | in service (2019) | |||
| وحدت [Vehdat] | P63, later- 1063 | Huangpu, Guangzhou, China | 13.6.1990 | in service (2019) |
Technical data
| Displacement standard, t | 390 |
|---|---|
| Displacement full, t | 435 |
| Length, m | 58.8 |
| Breadth, m | 7.20 |
| Draught, m | 2.40 mean hull |
| No of shafts | 4 |
| Machinery | 4 MTU 16V396 TB93 diesels |
| Power, h. p. | 8700 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(18) |
| Armament | 1 x 2 - 37/63 type 74, 2 x 2 - 14.5/93 |
| Electronic equipment | 2x OPS-9 or ARC-32A radars |
| Complement | 50 |
Graphics

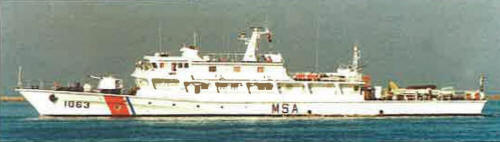

Vehdat 1994
Project history
Built on hulls of Chinese type 037 craft. Maritime Security Agency.
Modernizations
None.
Naval service
No significant events.
