ZARRAR fast attack craft (missile) (2007-2008)
Zarrar 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ضرر [Zarrar] | P03 | Yonca-Onuk, Tuzla, Turkey | 26.11.2007 | in service (2019) | |||
| قرار [Karrar] | P04 | Yonca-Onuk, Tuzla, Turkey | 11.4.2008 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 124 |
| Length, m | 33.0 pp 35.6 oa |
| Breadth, m | 6.70 |
| Draught, m | 1.40 |
| No of shafts | 3 waterjets |
| Machinery | CODAG: 1 Honeywell TF50 gas turbine + 2 MTU 12V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 60 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 850(36) |
| Armament | 2 x 2 Harpoon SSM (4 RGM-84C, provision for), 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon radar |
| Complement | 20 |
Graphics

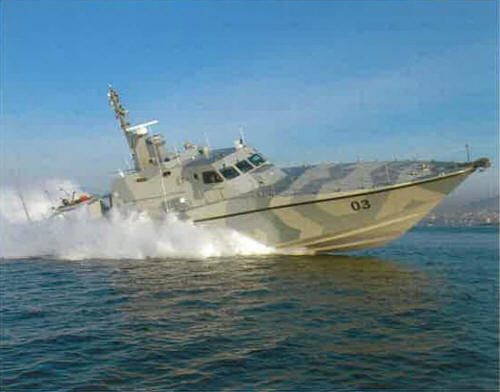

Zarrar 2007
Project history
Turkish Kaan 33 (MRTP 33) design. Built using composites, carry a small stern-launched RIB.
Modernizations
None.
Naval service
No significant events.
