JURRAT fast attack craft (missile) (2006)

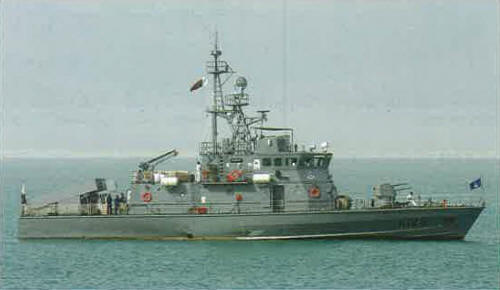

Jurrat 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| جُرات [Jurrat] | P1023 | Karachi NSY | 9.9.2004 | 24.2.2006 | in service (2019) | ||
| قوت [Quwwat] | P1028 | Karachi NSY | 13.9.2004 | 24.2.2006 | in service (2019) |
Technical data
| Displacement standard, t | 155 |
|---|---|
| Displacement full, t | 185 |
| Length, m | 38.9 |
| Breadth, m | 8.00 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 5985 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(17) |
| Armament | 2 x 2 C-802 SSM (4 YJ-2), 1 x 2 - 25/80 type 61M |
| Electronic equipment | type 348, type 756 radars, DR-3000 ECM suite, type 945G decoy RL |
| Complement | 31 |
Standard scale images
similar Jalalat 2000
Graphics
Jurrat 2010
Project history
Based on the Jalalat class. Steel hull with aluminium superstructures.
Modernizations
2008, both: - type 945G decoy RL; + MASS decoy RL
Naval service
No significant events.
