HDF01 torpedo hydrofoils (1973)

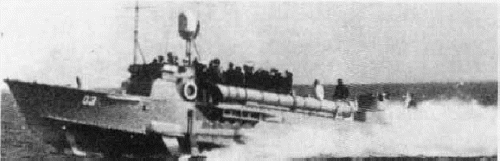

HDF03 1973
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
HDF01 - 04 |
Hudong SY, Shanghai, China or Chuangxin SY, China: HDF01-04 |
1973: HDF01-04 |
none |
Bangladesh, 1992: HDF01-04 |
none |
Technical data
| Displacement standard, t | 39 |
|---|---|
| Displacement full, t | 45 |
| Length, m | 22.5 |
| Breadth, m | 3.80 wl, 6.26 over foils |
| Draught, m | 1.15 propellers 1.12 over foils |
| No of shafts | 3 |
| Machinery | 3 M-50F-4 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(30) |
| Armament | 2 x 2 - 14.5/93, 2 - 533 TT |
| Electronic equipment | Zarnitsa radar |
| Complement | 11 |
Standard scale images
HDF01 1980
Graphics
HDF03 1973
Project history
Chinese type 025 hydrofoils.
Modernizations
None.
Naval service
No significant events.
