AZMAT fast attack craft (missile) (1965-1975/1984)





Dehshat 1994

Ships


Name No Yard No Builder Laid down Launched Comp Fate
عظمت [Azmat] P1025   Jiangnan, Shanghai, China     1965-1975 // 4.1984 stricken 1998
دہشت [Dehshat], 6.2005- صداقت [Sadaqat] P1026, 6.2005- P1069   Jiangnan, Shanghai, China     1965-1975 // 4.1984 MSA 6.2005, stricken 2018
ہمت [Himmat] P1027   Jiangnan, Shanghai, China     1965-1975 // 4.1984 stricken 2002
قوت [Quwwat] P1028   Jiangnan, Shanghai, China     1965-1975 // 4.1984 stricken 2003


Technical data


Displacement standard, t

175

Displacement full, t

205

Length, m

38.8

Breadth, m

7.60

Draught, m

1.70

No of shafts

3

Machinery

3 42-160 diesels

Power, h. p.

12000

Max speed, kts

35

Fuel, t

diesel oil

Endurance, nm(kts)

800(30)

Armament

4 x 1 Hai Ying-2 SSM (4 HY-2), 2 x 2 - 25/80 type 61M

Electronic equipment

type 352 radar

Complement

28



Standard scale images

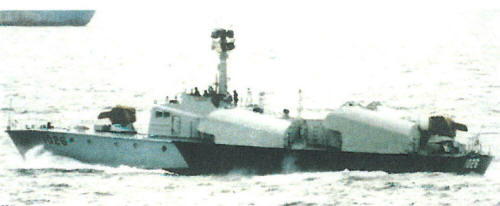

<i>Azmat </i>1990
Azmat 1990


Graphics


<i>Dehshat </i>1994
Dehshat 1994


Project history

Former Chinese type 021 boats, derivatives of the Soviet project 205.

Modernizations

2005, Sadaqat: - 4 x 1 Hai Ying-2 SSM

Naval service

No significant events.
