OMAN
AMPHIBIOUS SHIPS
SHINAS high-speed troop transports (2008)

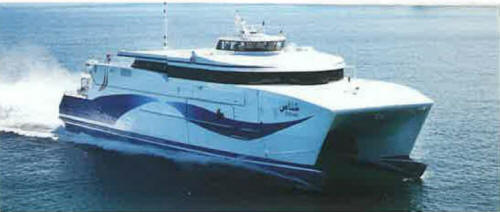

Shinas 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| شينز [Shinas] | Austal, Henderson, Australia | 27.9.2007 | 2/2008 | in service (2020) | |||
| رموز [Ormuz] | Austal, Henderson, Australia | 2008 | 8/2008 | in service (2020) |
Technical data
| Displacement standard, t | 146 |
|---|---|
| Displacement full, t | |
| Length, m | 61.1 wl 64.8 oa |
| Breadth, m | 16.5 |
| Draught, m | 2.10 |
| No of shafts | 4 waterjets |
| Machinery | 4 MTU 20V1163 TB73L diesels |
| Power, h. p. | 33560 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(40) |
| Armament | helicopter deck |
| Military load | 208 passengers, 56 light vehicles |
| Electronic equipment | Sperry Marine radar |
| Complement | 12 |
Graphics
Shinas 2007
Project history
Ordered in 2006. Catamaran-hulled, aluminium construction. Have a helicopter deck for light helicopter.
Modernizations
None.
Naval service
No significant events.
