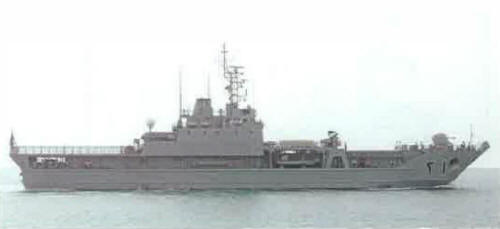

Nasr Al Bahr 2010

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
نصر البحر [Nasr Al Bahr]	L2, 2003- A2		Broke Marine, Lowestoft, UK	1983	16.5.1984	6.2.1985	in service (2020)

Technical data

Displacement standard, t
Displacement full, t	2500
Length, m	80.0 pp 93.0 oa
Breadth, m	15.5
Draught, m	2.60
No of shafts	2
Machinery	2 Paxman Valents 18RP200 diesels
Power, h. p.	7800
Max speed, kts	16
Fuel, t	diesel oil
Endurance, nm(kts)	5000(15)
Armament	1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, helicopter deck
Military load	2 LCVP, 650 t cargo or 7 tanks, 240 troops
Electronic equipment	Decca 1226, Decca 1290 radars, 9LV100, Lynx e/o systems, 2x SuperBarricade decoy RL
Complement	108

Standard scale images

Graphics

Project history

Sister-ship of Algerian Kalaat class, ordered in 1982. Has 75.0x7.4m vehicle deck equipped with 18.0x5.0m bow and 4.0x5.0m stern ramps. 16 t travelling crane, 2 Sea Truck type LCVPs are handled by them. Helicopter deck can accommodate Sea King / Commando or Super Puma helicopter.

Modernizations

None.

Naval service

No significant events.
