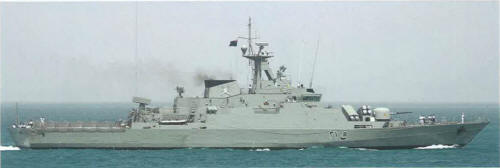

Qahir Al Amwaj 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
قاهر الأمواج [Qahir Al Amwaj]	C31, 2003- Q31		Vosper-Thornycroft, Woolston, UK	21.5.1993	21.9.1994	3.9.1996	in service (2020)
المزار [Al Muazzar]	C32, 2003- Q32		Vosper-Thornycroft, Woolston, UK	4.4.1994	26.9.1995	4.12.1996	in service (2020)

Technical data

Displacement standard, t	1135
Displacement full, t	1450
Length, m	76.0 pp 83.7 oa
Breadth, m	11.5
Draught, m	3.50
No of shafts	2
Machinery	4 Crossley-Pielstick 16PA6 V280STC diesels
Power, h. p.	30400
Max speed, kts	28
Fuel, t	diesel oil 156
Endurance, nm(kts)	3000(15)
Armament	2 x 4 MM40 Exocet SSM (8 MM40 Block II), 1 x 8 Crotale NG SAM (16 Crotale VT-1), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90, helicopter deck
Electronic equipment	type 1007, MW-08, Castor IIJ, Sting radars, IRSCAN e/o system, DR-3000S1 Compact ECM suite, 2x SuperBarricade decoy RL, SEWACO-FD CCS
Complement	76

Standard scale images

Graphics

Project history

Project Muheet, ordered in 1992. Have 20.5x11.5m helicopter deck but no hangar. Can be fitted with 2 triple 324mm ASW TTs and ATAS towed sonar array.

Modernizations

2011, both: - DR-3000S1 Compact ECM suite, SEWACO-FD CCS; + Vigile 400 ECM suite, TACTICOS CCS

Naval service

No significant events.
