AL SEEB corvettes (2015-2016)
Al Seeb 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| السيب [Al Seeb] | Z20 | ST Marine, Benoi, Singapore | 28.3.2013 | 29.1.2014 | 31.3.2015 | in service (2020) | |
| الشينس [Al Shinas] | Z21 | ST Marine, Benoi, Singapore | 5.9.2013 | 17.6.2014 | 10.9.2015 | in service (2020) | |
| ساده [Sadh] | Z22 | ST Marine, Benoi, Singapore | 7.1.2014 | 17.9.2014 | 1.2016 | in service (2020) | |
| حساب [Hassab] | Z23 | ST Marine, Benoi, Singapore | 15.6.2014 | 2015 | 24.6.2016 | in service (2020) |
Technical data
| Displacement standard, t | 1110 |
|---|---|
| Displacement full, t | 1250 |
| Length, m | 75.0 |
| Breadth, m | 12.2 |
| Draught, m | 3.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 20V8000 M91 diesels |
| Power, h. p. | 24400 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(16) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/82 OTO-Breda 564, helicopter deck |
| Electronic equipment | Variant, STIR 1.2, 2x nav. radars, Vigile 200 ECM suite, Sylena decoy RL, TACTICOS CCS |
| Complement | 60 |
Graphics

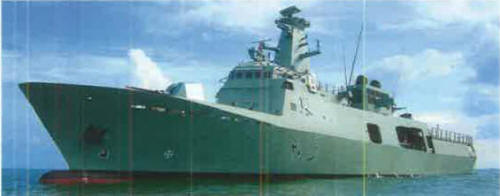

Al Seeb 2014
Project history
Project Al Ofouq, ordered in 2012 as replacement for Al Seeb class. Is also called as Fearless 75 design.
Modernizations
None.
Naval service
No significant events.
