HARAS 7 patrol boats (1981-1982)
Haras 9 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
7 حارس [Haras 7] 9 حارس [Haras 9] 10 حارس [Haras 10] |
Karlskronavarvet, Karlskrona, Sweden: Haras 7, 9, 10 |
1981: Haras 7 1982: Haras 9, 10 |
none |
none |
in service (2020): Haras 7, 9, 10 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | Haras 7, 10: 80 Haras 9: 82 |
| Length, m | Haras 7, 10: 28.7 Haras 9: 29.9 |
| Breadth, m | Haras 7, 10: 5.20 Haras 9: 5.80 |
| Draught, m | Haras 7, 10: 1.10 Haras 9: 1.20 |
| No of shafts | 2 |
| Machinery | Haras 7, 10: 2 MTU 8V331 TC82 diesels Haras 9: 2 MTU 12V396 diesels |
| Power, h. p. | Haras 7, 10: 1866 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(15) |
| Armament | 1 x 1 - 20/70 Mk 7 |
| Electronic equipment | Decca 1226C radar |
| Complement | 13 |
Graphics

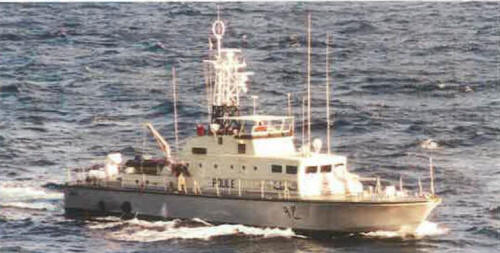

Haras 9 2000
Project history
Royal Police. GRP hull.
Modernizations
None.
Naval service
No significant events.
