HARAS 3 patrol boats (2009)
2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
3-5 حارس [Haras 3-5] |
US Marine, Gulfport, USA: Haras 3-5 |
2009: Haras 3-5 |
none |
none |
in service (2020): Haras 3-5 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 52 |
| Length, m | 27.4 |
| Breadth, m | 5.50 |
| Draught, m | 1.83 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 5470 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(30) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | 2x radars |
| Complement | 11 |

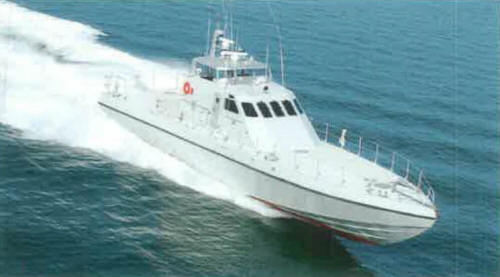

Graphics
2008
Project history
Royal Police. US PBC Mk V type. Ordered in 2005 but delivery was denied due to hurricane Katrina badly damaged builder's shipyard.
Modernizations
None.
Naval service
No significant events.
