HARAS 1 patrol ships (2008-2009)
Haras 1 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 1 حارس [Haras 1] | 1 | CN Rodriguez, Messina, Italy | 2008 | in service (2020) | |||
| 2 حارس [Haras 2] | 2 | CN Rodriguez, Messina, Italy | 2009 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 390 |
| Length, m | 45.5 pp 52.0 oa |
| Breadth, m | 15.5 |
| Draught, m | 1.80 |
| No of shafts | 4 waterjets |
| Machinery | 4 MTU 16V4000 M71 diesels |
| Power, h. p. | 13400 |
| Max speed, kts | 41 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90, helicopter deck |
| Electronic equipment | surf. search, nav. radars |
| Complement | 26 + 100 passengers |
Graphics

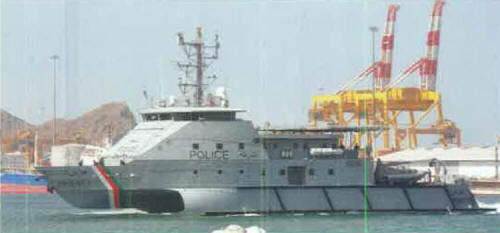

Haras 1 2012
Project history
Contract was signed in 2007. Catamaran-hulled, aluminium construction. Ships are equipped with a helicopter deck, fire fighting facilities and passenger cabin for 100 personnel or 200 survivors, small medical centre and an operation centre.
Modernizations
None.
Naval service
No significant events.
