DHEEB AL BAHAR 2 patrol boats (1988)
Dheeb Al Bahar 3 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2 ذيب البحر [Dheeb Al Bahar 2], 2007- 11 حارس [Haras 11] 3 ذيب البحر [Dheeb Al Bahar 3], 2007- 12 حارس [Haras 12] |
Yokohama Yacht, Yokohama, Japan: Dheeb Al Bahar 2, 3 |
1988: Dheeb Al Bahar 2, 3 |
none |
none |
2013: Haras 11 in service (2020); Haras 12 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 65 |
| Length, m | 23.0 |
| Breadth, m | 5.20 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V396 TB93 diesels |
| Power, h. p. | 3920 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 420(30) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno 2400, Furuno FR-711-2 radars |
| Complement | 8 |
Graphics

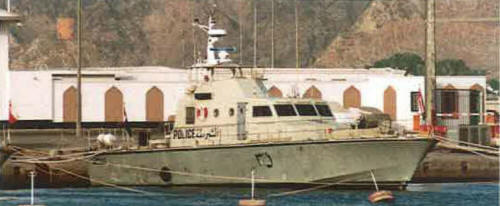

Dheeb Al Bahar 3 2003
Project history
Royal Police. GRP hull. Type D59116.
Modernizations
None.
Naval service
No significant events.
