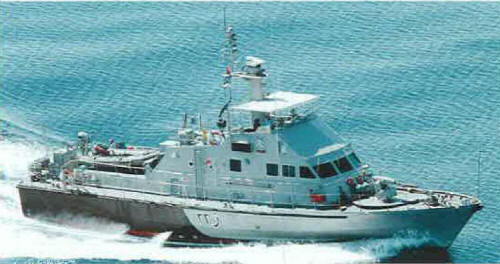

Al Sadh 2004

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
B20 السيب [Al Seeb], 2003- Z20 السيب [Al Seeb] B21 الشينس [Al Shinas], 2003- Z21 الشينس [Al Shinas] B22 الساده [Al Sadh], 2003- Z22 الساده [Al Sadh] B23 الخصب [Al Khasab], 2003- Z23 الخصب [Al Khasab]	Vosper Pty, Singapore: B20-23	1981: B20-23	none	none	2015: Z20, 21 2016: Z22, 23

Technical data

Displacement standard, t	60
Displacement full, t	75
Length, m	23.0 pp 25.0 oa
Breadth, m	5.80
Draught, m	1.60
No of shafts	3
Machinery	2 MTU 12V331 TC92 diesels + 1 Cummins N855M diesel
Power, h. p.	3072 + 197 = 3072
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	2300(8)
Armament	1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90
Electronic equipment	Decca 1226 radar
Complement	14

Graphics

Project history

Craft had been completed in 1980 on speculation by builder and ordered in 1981. GRP hull.

Modernizations

None.

Naval service

No significant events.
