NAVYPEDIA


Senja 2014

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Nordkapp	W320		Bergen MV		14.5.1980	25.4.1981	in service (2019)
Senja	W321		Horten Verft		16.3.1980	6.3.1981	in service (2019)
Andenes	W322		Haugesund Verksted		21.3.1981	30.1.1982	in service (2019)

Technical data

Displacement standard, t	2165
Displacement full, t	3240
Length, m	97.5 pp 105.5 oa
Breadth, m	14.6
Draught, m	4.55
No of shafts	2
Machinery	4 Wichmann-Wärtsilä 9AXAG diesels
Power, h. p.	16180
Max speed, kts	23
Fuel, t	diesel oil 350
Endurance, nm(kts)	7500(15)
Armament	1 x 1 - 57/70 SAK-57 Mk 1, 4 x 1 - 20/90 Mk 20 Rh202, 2 x 3 - 324 Mk 32 TT, 1 helicopter (Lynx)
Electronic equipment	2x Decca TM1226, Decca RM914, AWS-4, 9LV 200 Mk 2, 9LV218 Mk 2 radars, SM8312 e/o system, SS105 sonar
Complement	48

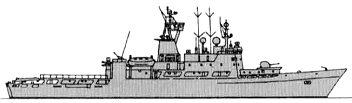

Standard scale images

Graphics

Project history

In 1977 Naval Material Command requested two new types of EEZ patrol vessels, three of ice-strengthened type and four of normal type. Later budget was cut and only three type 320 ships were built. Only Nordkapp is strengthened for ice navigation. Ships can able for patrol, fire-fighting, anti-pollution, meteorological duties and can serve as escorts in wartime (they can be fitted with 6 Penguin Mk 2 SSMs).

Modernizations

1997-1998, all: - 1 x 1 - 20/90; + 1 x 2 Simbad SAM (~8 Mistral), MSI-80S CCS

2000-2002, all: - 9LV200 Mk 2, AWS-4 radars, SS105 sonar, MSI-80S CCS; + SPS-67(v)3 radar, Vigy 20 e/o system, SP270 sonar, EDO CMS CCS

2006-2008, all: - 2 x 3 - 324 Mk 32 TT, 1 Lynx helicopter, SPS-67(v)3, 9LV Mk 218 Mk 2 radars; + 1 NH90 helicopter, TRS-3D 16ES radar

Naval service

No significant events.
