STORM fast attack craft (1963-1967)





Odd 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Storm P960   Bergens MV   19.3.1963 5.1963 stricken 1967
Storm P960   Bergens MV   6.10.1967 11.1967 stricken 1983
Blink P961   Bergens MV   28.6.1965 12.1965 stricken 1998
Glimt P962   Bergens MV   27.9.1965 3.1966 stricken 1992, to Lithuania (Dzūkas)
Skjold P963   Westermoens BB, Mandal   17.2.1966 3.1966 stricken 1993
Trygg P964   Bergens MV   27.11.1965 5.1966 stricken 1993
Kjekk P965   Bergens MV   27.1.1966 8.1966 stricken 1997, to Lithuania (Dzūkas)
Djerv P966   Westermoens BB, Mandal   28.4.1966 10.1966 stricken 1997, to Latvia (Zibens)
Skudd P967   Bergens MV   25.5.1966 11.1966 stricken 1998, to Lithuania (Sėlis)
Arg P968   Bergens MV   24.5.1966 12.1966 stricken 1992, to Estonia (Torm)
Steil P969   Westermoens BB, Mandal   20.9.1966 1.1967 stricken 1998, to Lithuania (Skalvis)
Brann P970   Bergens MV   5.7.1966 2.1967 stricken 1990
Tross P971   Bergens MV   29.9.1966 3.1967 stricken 1989
Hvass P972   Westermoens BB, Mandal   20.12.1966 4.1967 stricken 1998, to Latvia (Lode)
Traust P973   Bergens MV   18.11.1966 5.1967 stricken 1993, to Latvia (Bulta)
Brott P974   Bergens MV   27.1.1967 6.1967 stricken 1992
Odd P975   Westermoens BB, Mandal   7.4.1967 7.1967 stricken 1991
Pil P976   Bergens MV   29.3.1967 8.1967 stricken 1979
Brask P977   Bergens MV   27.5.1967 9.1967 stricken 1997
Rokk P978   Westermoens BB, Mandal   1.6.1967 10.1967 stricken 1992
Gnist P979   Bergens MV   18.8.1967 11.1967 stricken 1997, to Latvia (Linga)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Storm P960   Bergens MV   19.3.1963 5.1963 stricken 1967 Storm P960   Bergens MV   6.10.1967 11.1967 stricken 1983 Blink P961   Bergens MV   28.6.1965 12.1965 stricken 1998 Glimt P962   Bergens MV   27.9.1965 3.1966 stricken 1992, to Lithuania (Dzūkas) Skjold P963   Westermoens BB, Mandal   17.2.1966 3.1966 stricken 1993 Trygg P964   Bergens MV   27.11.1965 5.1966 stricken 1993 Kjekk P965   Bergens MV   27.1.1966 8.1966 stricken 1997, to Lithuania (Dzūkas) Djerv P966   Westermoens BB, Mandal   28.4.1966 10.1966 stricken 1997, to Latvia (Zibens) Skudd P967   Bergens MV   25.5.1966 11.1966 stricken 1998, to Lithuania (Sėlis) Arg P968   Bergens MV   24.5.1966 12.1966 stricken 1992, to Estonia (Torm) Steil P969   Westermoens BB, Mandal   20.9.1966 1.1967 stricken 1998, to Lithuania (Skalvis) Brann P970   Bergens MV   5.7.1966 2.1967 stricken 1990 Tross P971   Bergens MV   29.9.1966 3.1967 stricken 1989 Hvass P972   Westermoens BB, Mandal   20.12.1966 4.1967 stricken 1998, to Latvia (Lode) Traust P973   Bergens MV   18.11.1966 5.1967 stricken 1993, to Latvia (Bulta) Brott P974   Bergens MV   27.1.1967 6.1967 stricken 1992 Odd P975   Westermoens BB, Mandal   7.4.1967 7.1967 stricken 1991 Pil P976   Bergens MV   29.3.1967 8.1967 stricken 1979 Brask P977   Bergens MV   27.5.1967 9.1967 stricken 1997 Rokk P978   Westermoens BB, Mandal   1.6.1967 10.1967 stricken 1992 Gnist P979   Bergens MV   18.8.1967 11.1967 stricken 1997, to Latvia (Linga)

Technical data


Displacement standard, t

100

Displacement full, t125
Length, m

36.6

Breadth, m

6.20

Draught, m

1.50

No of shafts

2

Machinery

2 Maybach MB872A diesels

Power, h. p.

7200

Max speed, kts

37

Fuel, t

diesel oil

Endurance, nm(kts)550(36)
Armament

1 x 1 - 76/50 Bofors TAK76, 1 x 1 - 40/70 Bofors 350

Electronic equipmentDecca TM909, WM26 radars
Complement

19



Standard scale images


<i>Storm </i>1970
Storm 1970
<i>Storm </i>1980
Storm 1980


Graphics

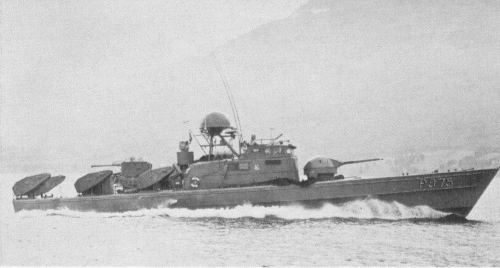

<i>Odd </i>1979
Odd 1979


Project history

In 1959 23 MGBs were voted under the next five-year programme, but the number was reduced to 20. A first Storm was built as a prototype. This boat underwent many modifications during 1963-65 and was eventually scrapped. Boats did not carry full complement of SSMs at all times.

Modernizations

1970-1975, all survived: - TM909 radar; + 6 x 1 Penguin Mk 1 SSM (6 Penguin Mk 1), Decca TM1226 radar

Naval service

No significant events.
