SNØGG fast attack craft (1970-1971)





Rapp 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Snøgg P980   Westermoens BB, Mandal   2.9.1969 1.1970 stricken 1995
Rapp P981   Westermoens BB, Mandal   29.11.1969 8.1970 stricken 1995
Snar P982   Westermoens BB, Mandal   2.2.1970 9.1970 stricken 1995
Rask P983   Westermoens BB, Mandal   26.5.1970 11.1970 stricken 1996
Kvikk P984   Westermoens BB, Mandal   9.10.1970 1.1971 stricken 1996
Kjapp P985   Westermoens BB, Mandal   1970 4.1971 stricken 1995


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Snøgg P980   Westermoens BB, Mandal   2.9.1969 1.1970 stricken 1995 Rapp P981   Westermoens BB, Mandal   29.11.1969 8.1970 stricken 1995 Snar P982   Westermoens BB, Mandal   2.2.1970 9.1970 stricken 1995 Rask P983   Westermoens BB, Mandal   26.5.1970 11.1970 stricken 1996 Kvikk P984   Westermoens BB, Mandal   9.10.1970 1.1971 stricken 1996 Kjapp P985   Westermoens BB, Mandal   1970 4.1971 stricken 1995

Technical data


Displacement standard, t

125

Displacement full, t138
Length, m

36.5

Breadth, m

6.20

Draught, m

1.30

No of shafts

2

Machinery

2 MTU 16V538 TB92 diesels

Power, h. p.

7200

Max speed, kts

36

Fuel, t

diesel oil

Endurance, nm(kts)550(32)
Armament

4 x 1 Penguin Mk 1 SSM (4 Penguin Mk 1), 1 x 1 - 40/70 Bofors 350, 4 - 533 TT, 2 DCR

Electronic equipmentDecca TM626 radar
Complement

19



Standard scale images


<i>Snøgg </i>1975
Snøgg 1975


Graphics

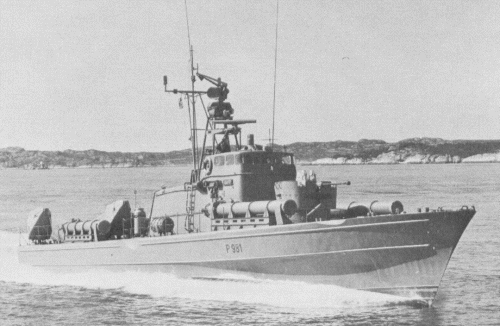

<i>Rapp </i>1979
Rapp 1979


Project history

Generally similar to Storm class. Had TORI fire control system and can fire wire-guided torpedoes. Boats did not carry full complement of SSMs at all times.

Modernizations

1970s, all: - TM626 radar; + Decca TM1226 radar

Naval service

No significant events.
