NIGERIA
COASTAL FORCES
TORIE patrol boats (2014)





Egede 2013

Ships


Names Builders Commissioned Losses Transfers Discarding

P258 Torie

P259 Egede

Nautic Africa, Cape Town, South Africa: P258, 259

2014: P258, 259

none

none

in service (2019): P258, 259



Technical data


Displacement standard, t
Displacement full, t26
Length, m

17.0

Breadth, m

4.50

Draught, m

0.95

No of shafts

2 waterjets

Machinery

2 MTU 8V2000 M84L diesels

Power, h. p.

2440

Max speed, kts

45

Fuel, t

diesel oil

Endurance, nm(kts)400
Armament

1 x 1 - 12.7/90, 1 x 1 - 7.6/90

Electronic equipment

radar

Complement6


Graphics

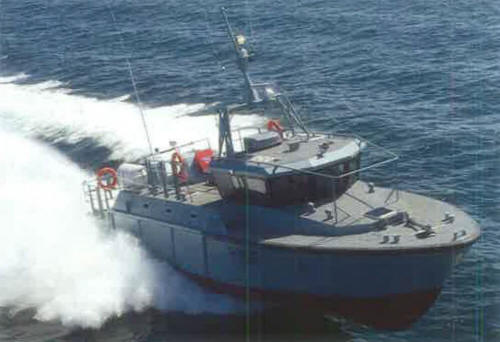

<i>Egede </i>2013
Egede 2013


Project history

Nautic Africa 'Sentinel' design.

Modernizations

None.

Naval service

No significant events.
