P239 patrol boats (1985)





P240 2002

Ships


Names Builders Commissioned Losses Transfers Discarding

P239-242

Damen, Gorinchem, Netherlands: P239-242

1985: P239-242

none

none

late 1980s: P241

early 2000s: P239, 240, 242



Technical data


Displacement standard, t
Displacement full, t
Length, m

14.5

Breadth, m

4.40

Draught, m

0.80

No of shafts

2

Machinery

2 MTU diesels

Power, h. p.

1200

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 7.6/90

Electronic equipment

radar

Complement

8



Graphics

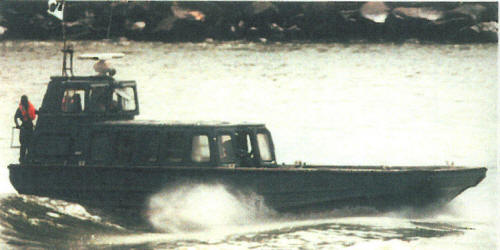

<i>P240 </i>2002
P240 2002


Project history

Damen 'Sea Truck' design. Aluminium construction, bow ramp for beaching. Coast Guard.

Modernizations

None.

Naval service

No significant events.
