MAKURDI patrol boats (1974-1977)

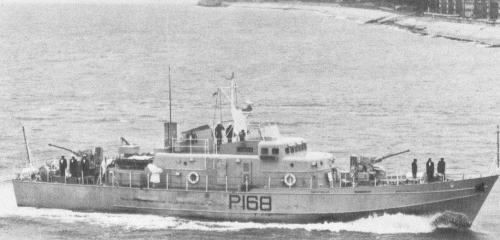

Hadeja 1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Makurdi P167   Brooke Marine, Lowestoft, UK   21.3.1974 14.8.1974 discarded 1990s, restored 2010, in service (2019)
Hadeja P168   Brooke Marine, Lowestoft, UK   25.5.1974 14.8.1974 discarded 1990s, restored 2014, in service (2019)
Jebba P171   Brooke Marine, Lowestoft, UK   1.12.1976 29.4.1977 discarded 1990s
Oguta P172   Brooke Marine, Lowestoft, UK   17.1.1977 29.4.1977 discarded 1990s


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Makurdi P167   Brooke Marine, Lowestoft, UK   21.3.1974 14.8.1974 discarded 1990s, restored 2010, in service (2019) Hadeja P168   Brooke Marine, Lowestoft, UK   25.5.1974 14.8.1974 discarded 1990s, restored 2014, in service (2019) Jebba P171   Brooke Marine, Lowestoft, UK   1.12.1976 29.4.1977 discarded 1990s Oguta P172   Brooke Marine, Lowestoft, UK   17.1.1977 29.4.1977 discarded 1990s

Technical data


Displacement standard, t

115

Displacement full, t

145

Length, m

32.6

Breadth, m

6.10

Draught, m

2.10

No of shafts

2

Machinery

2 Ruston-Paxman YJCM diesels

Power, h. p.

3000

Max speed, kts

20

Fuel, t

diesel oil 18

Endurance, nm(kts)

2300(12)

Armament

2 x 1 - 40/60 Mk 9

Electronic equipment

Decca 1226 radar

Complement

24



Standard scale images


<i>Makurdi </i>1980
Makurdi 1980


Graphics


<i>Hadeja </i>1974
Hadeja 1974


Project history

Large patrol boats.

Modernizations

1981, all: - 2 x 1 - 40/60; + 2 x 2 - 30/75 Emerlec EX-30

Naval service

No significant events.
