DORINA patrol boat (2014)





Dorina 2013

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Dorina P101   Océa, St-Nazaire, France   7.2013 18.3.2014 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Dorina P101   Océa, St-Nazaire, France   7.2013 18.3.2014 in service (2019)

Technical data


Displacement standard, t100
Displacement full, t116
Length, m

31.8
Breadth, m

6.30
Draught, m

1.20
No of shafts

2 waterjets
Machinery

2 MTU 12V2000 M84 diesels
Power, h. p.

3270
Max speed, kts

30
Fuel, t

diesel oil
Endurance, nm(kts)900(14)
Armament

1 x 1 - 20/90 Super Sea Rogue
Electronic equipment

2x Furuno FAR2117 radars
Complement

13


Graphics

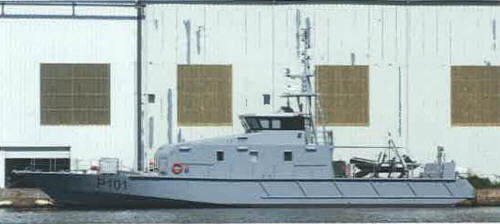

<i>Dorina </i>2013
Dorina 2013


Project history

Océa FPB98 class.

Modernizations

None.

Naval service

No significant events.
