FIGHTING SHIPS OF THE WORLD
NICARAGUA
COASTAL FORCES
GENERAL JOSE DOLORES ESTRADAVADO patrol boats (2007)
Cacique Diriangen 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
401 General Jose Dolores Estradavado 402 Cacique Agateyte 403 General Jose Santos Zelaya López 404 Cacique Diriangen |
Rodman, Vigo, Spain: 401-404 |
2007: 401-404 |
none |
none |
in service (2019): 401-404 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 63 |
| Length, m | 30.0 |
| Breadth, m | 5.90 |
| Draught, m | 1.30 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar 3412C diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | 2 x 1 - 14.5/93 |
| Electronic equipment | Furuno FR2115 radar |
| Complement | 12 |
Graphics

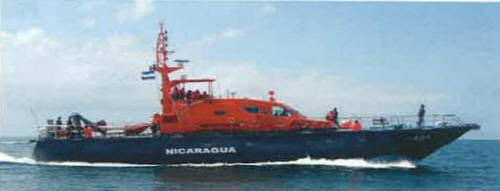

Cacique Diriangen 2008
Project history
Rodman 101 design, boats were donated by the Spanish government. GRP hull. Used for fishery protection.
Modernizations
None.
Naval service
No significant events.
