K I submarine (1914)

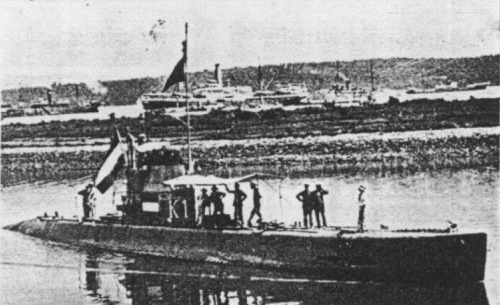

K I after WWI Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| K I | 142 | De Schelde, Vlissingen | 9.1911 | 20.5.1913 | 7.1914 | stricken 1928 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 330 / 386 |
| Length, m | 46.2 pp 48.6 oa |
| Breadth, m | 4.69 |
| Draught, m | 3.02 |
| No of shafts | 2 |
| Machinery | 2 MAN 8-cyl diesels / 2 electric motors |
| Power, h. p. | 1800 / 500 |
| Max speed, kts | 17 / 10.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(11) / 30(8) |
| Armament | 3 - 450 TT (2 bow, 1 stern, 6) |
| Complement | 17 |
| Diving depth operational, m | 40 |
Standard scale images
K I 1914
Graphics
K I after WWI Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
First Dutch submarine for service in the East Indias, K means 'Koloniaal'. Hay-Fiume type, design of Marley F. Hay and Whitehead Co, Fiume (Austria-Hungary). Single-hulled.
Modernizations
None.
Naval service
No significant events.
