RIGEL minelayer (1931)

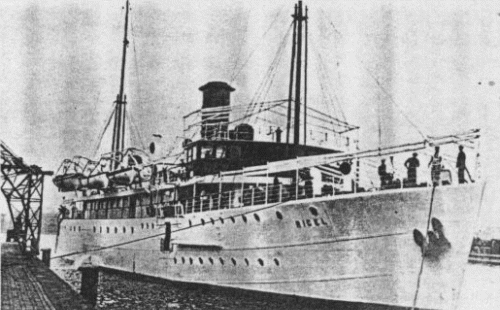

Rigel 1931 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Rigel   37 Nederlandse Dok- en Scheepsbouw Mij, Amsterdam 3.1930 7.3.1931 11.1931 scuttled 2.3.1942


Technical data


Displacement standard, t

1378

Displacement full, t

1631

Length, m

69.6 pp 74.0 oa

Breadth, m

11.0

Draught, m

3.06

No of shafts

2

Machinery

2 VTE, 2 boilers

Power, h. p.

1400

Max speed, kts

12.7

Fuel, t

coal 197

Endurance, nm(kts)2200(10)
Armament

2 x 1 - 75/37 Krupp Nr.1, 2 x 1 - 12.7/90, 150 mines

Complement

67



Standard scale images


<i>Rigel</i> 1932
Rigel 1932


Graphics


<i>Rigel</i> 1931 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Rigel 1931 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Patrol ship and yacht of the governor-general of the East Indies. The design was developed on the basis of minelayer Krakatau. Rigel was reclassified to minelayer 15.10.1939.

Modernizations

None.

Naval service

Rigel was scuttled at Batavia 2.3.1942. She was lifted by Japanese in March, 1944 and put into repair, in 1945 she was returned to the Netherlands, but never commissioned again. In 1951, still being on repair at Surabaya, ship was transferred to Indonesia and renamed Dewakambar; in Naval Forces of Indonesia it was planed to convert her to survey vessel, however the further fate of the ship is unknown (probably, she was never repaired).

Many thanks to Wolfgang Stöhr for additional information on this page.
