ALBLAS inshore minesweepers (1960-1962)





Chömpff 1978 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Alblas M868 657 De Noord, Alblasserdam 1/1958 29.6.1959 3.1960 stricken 1.1984
Bussemaker M869   De Vries Lentsch, Amsterdam 8/1958 27.2.1960 8.1960 stricken 1.1984
Lacomblé M870   Arnhemse SM 4/1959 6.2.1960 8.1960 stricken 8.1984
Van Hamel M871   De Vries Lentsch, Amsterdam 4/1959 28.5.1960 11.1960 stricken 2.1984
Van Straelen M872   Arnhemse SM 11/1958 17.5.1960 12.1960 stricken 1.1984
Van Moppes M873 658 De Noord, Alblasserdam 4/1959 10.5.1960 12.1960 stricken 9.1985
Chömpff M874 659 De Noord, Alblasserdam 6/1959 10.5.1960 12.1960 stricken 1.1984
Van Well Groeneveld M875   Arnhemse SM 12/1959 1.10.1960 4.1961 stricken 1.1984
Schuiling M876   De Vries Lentsch, Amsterdam 6/1959 30.6.1960 4.1961 stricken 1.1984
Van Versendaal M877 662 De Noord, Alblasserdam 3/1961 4.12.1961 4.1962 stricken 1.1984
Van der Wel M878   De Vries Lentsch, Amsterdam 5/1960 3.5.1961 10.1961 stricken 1.1984
Van't Hoff M879 660 De Noord, Alblasserdam 6/1960 15.3.1961 10.1961 stricken 1.1984
Mahu M880 661 De Noord, Alblasserdam 6/1960 15.3.1961 10.1961 stricken 1.1984
Staverman M881   De Vries Lentsch, Amsterdam 7/1960 30.8.1961 2.1962 stricken 1.1984
Houtepen M882   Arnhemse SM 9/1960 26.8.1961 3.1962 stricken 1.1984
Zomer M883   Arnhemse SM 5/1960 4.3.1961 10.1961 stricken 1.1984


Technical data


Displacement standard, t

151

Displacement full, t

171

Length, m

33.1

Breadth, m

6.70

Draught, m

1.80

No of shafts

2

Machinery

2 Werkspoor diesels

Power, h. p.

1100

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/70 Mk 7, LL mechanical/magnetic/acoustic minesweeping gear

Electronic equipmentDecca radar
Complement

12



Standard scale images


<i>Van Straelen </i>1975
Van Straelen 1975


Graphics

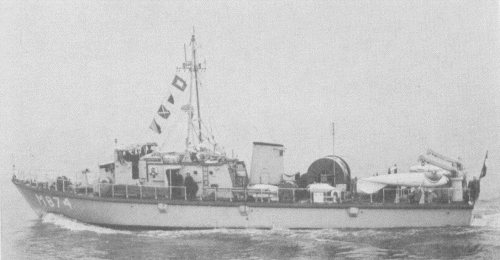

<i>Chömpff </i>1978 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Chömpff 1978 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history Eight of these inshore minesweepers were funded under MDAP and eight were purchased by the Netherlands. Although similar in size, conception and construction to the British 'H

Eight of these inshore minesweepers were funded under MDAP and eight were purchased by the Netherlands. Although similar in size, conception and construction to the British 'Ham' class, they were strictly a national design, and could be distinguished from other European inshore minesweepers by the configuration of their funnel and mast.

Modernizations

None.

Naval service

No significant events.
