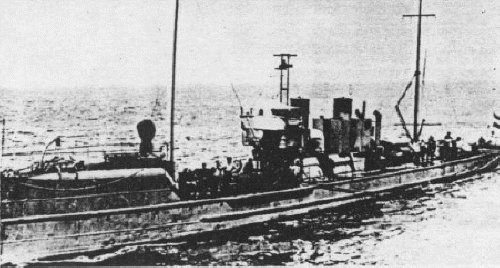

G16 between the wars Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
G13		151	De Schelde, Vlissingen	3.1913	18.10.1913	3.1914	to United Kingdom 12.1940-7/1942, BU 2.1943
G14		152	De Schelde, Vlissingen	3.1913	15.11.1913	3.1914	internal explosion 11.9.1919, BU
G15		254	Fijenoord, Schiedam	6.1913	3.1.1914	8.1914	to United Kingdom 12.1940-7/1942, BU 2.1943
G16		255	Fijenoord, Schiedam	7.1913	10.3.1914	7.1914	scuttled 14.5.1940

Technical data

Displacement normal, t	180
Displacement full, t	230
Length, m	49.5 pp
Breadth, m	5.25
Draught, m	1.50 normal
No of shafts	2
Machinery	2 VTE, 2 cylindrical boilers
Power, h. p.	2600
Max speed, kts	25
Fuel, t	coal 44
Endurance, nm(kts)	1230(8)
Armament	2 x 1 - 75/37 Krupp No.4, 3 x 1 - 450 TT
Complement	27

Standard scale images

Graphics

Project history

Further development of Yarrow designs (Hydra and Ophir classes), differed by good seaworthiness for their dimensions: that was reached thanks to presence of a high forecastle. To the Second World War beginning they absolutely became outdated and were used as training and patrol ships in European waters.

Modernizations

1930s, G13, 15, 16: + 2 x 1 - 12.7/90

Naval service

G14 was stricken after boiler explosion 11.9.1919.

G16 was scuttled 14.5.1940 at Den Helder; she was salvaged, repaired and entered German Navy list as torpedo recovery vessel TFA9, BU after war. G13 and G15 in May, 1940 escaped to Britain; 27.12.1940 both were transferred to RN, returned 27.7.1942 and in February, 1943 scrapped.

Many thanks to Wolfgang Stöhr for additional information on this page.
