ARDJOENO 1st class torpedo boats (1887-1892)





Ardjoeno

Ships


Names Builders Commissioned Losses Transfers Discarding

Ardjoeno

Batok

Dempo

Cycloop

Habang

Goentoer

Empong

Foka

Krakatau

Idjen

Yarrow, Poplar, UK: Ardjoeno, Empong

Rijkwerf Amsterdam: Batok, Cycloop, Habang, Goentoer, Foka, Krakatau, Idjen

Fijenoord, Schiedam: Dempo

1887: Ardjoeno, Dempo

1888: Habang, Krakatau, Cycloop

1889: Batok, Foka, Idjen

1890: Empong

1892: Goentoer

none

none

1911: Ardjoeno, Dempo, Batok, Goentoer

1912: Habang

1913: Foka, Krakatau

1918: Cycloop

1919: Empong, Idjen



Technical data


Displacement normal, t

Ardjoeno, Dempo: 82

Batok, Cycloop: 84

Habang: 79

Goentoer, Empong, Foka: 85

Krakatau: 86

Idjen: 90

Displacement full, t
Length, m

Ardjoeno, Batok, Dempo: 38.4

Cycloop, Goentoer, Empong, Foka: 38.6

Habang, Krakatau, Idjen: 39.2

Breadth, m

3.97

Draught, m

Ardjoeno: 1.83

Batok, Dempo, Cycloop: 2.06

Habang, Goentoer, Empong, Foka, Krakatau, Idjen: 1.88

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

Ardjoeno: 800

Batok: 725

Dempo: 760

Cycloop: 680

Habang: 928

Goentoer: 728

Empong: 1089

Foka: 962

Krakatau: 746

Idjen: 836

Max speed, kts

Ardjoeno: 21

Batok: 20.7

Dempo: 20.5

Cycloop: 19.8

Habang: 21.7

Goentoer: 20

Empong: 22.8

Foka: 22.1

Krakatau: 19.1

Idjen: 20.6

Fuel, t

coal 10

Endurance, nm(kts)

1400(10)

Armament

2 x 1 - 37/20 Hotchkiss, 2 - 450 TT (bow)

Complement

16



Standard scale images


<i>Ardjoeno </i>1887
Ardjoeno 1887


Graphics

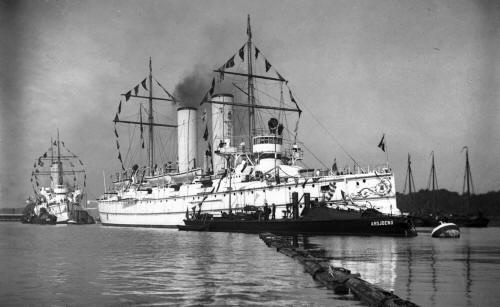

<i>Ardjoeno</i>
Ardjoeno

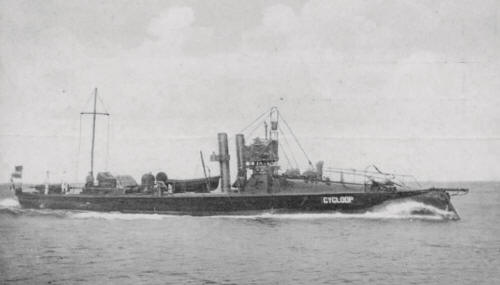

<i>Cycloop</i>
Cycloop


Project history

1st class torpedo boats.

Modernizations

None.

Naval service

No significant events.
