Jaguar 2006

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate

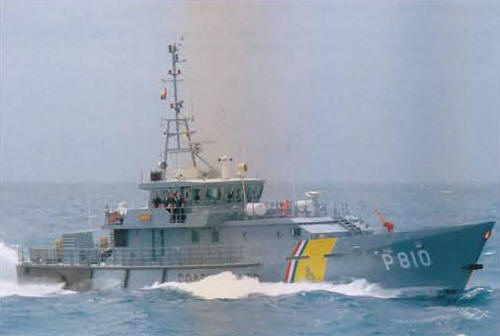

Jaguar	P810		Damen, Gorinchem	18.8.1997	31.3.1998	2.11.1998	in service (2019)
Panter	P811		Damen, Gorinchem	20.9.1997	19.5.1998	18.1.1999	in service (2019)
Poema	P812		Damen, Gorinchem	5.1.1998	7.1.1999	14.3.1999	in service (2019)

Technical data

Displacement standard, t	170
Displacement full, t	205
Length, m	40.0 pp 42.8 oa
Breadth, m	7.11
Draught, m	2.52 propellers
No of shafts	2
Machinery	2 Caterpillar 3516DITA diesels
Power, h. p.	5600
Max speed, kts	26
Fuel, t	diesel oil 25
Endurance, nm(kts)	2000(12)
Armament	1 x 1 - 12.7/90
Electronic equipment	type 1007, Scout radars, SEWACO CCS
Complement	11 + 6 passengers

Standard scale images

Graphics

Project history

Jaguar ran trials on 15.10.1998 and was handed over about five months behind schedule; she left for the Caribbean during January 1999. Are able to operate in State 4-5 seas. Carry a video camera, audio recording equipment, chemical and gas sensors, and firefighting equipment (including a firefighting monitor on the forecastle and a 2.68m³ foam tank). Thermal-imaging and image-intensification sensors, a secure communications suite, and a gas-tight citadel are fitted. The six-man inspection RIB is carried on an inclined ramp at the stern and can achieve 45kts on its inboard diesel/waterjet propulsion plant; also carried is a 3.8m dory with a 25hp outboard. Have a variant of the Thales SEWACO combat data system to coordinate the various sensor data.

Modernizations

None.

Naval service

Jaguar suffered a serious fire on 23.5.1999 and was repaired by the builder.
