SCHORPIONEN turret rams (1868)

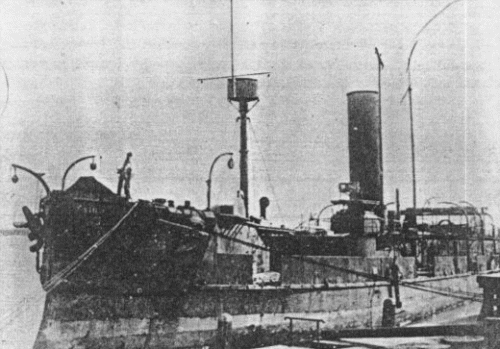

Stier Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Schorpionen     F C de la Méditerranée, La Seyne, France 1867 18.1.1868 9.1868 accommodation ship 11.1906
Stier   360 Laird, Birkenhead, UK 1867 5.4.1868 1868 stricken 1908


Technical data


Displacement normal, t

Schorpionen: 2140

Stier: 2078

Displacement full, t



Length, m

62.5

Breadth, m

11.9

Draught, m

Schorpionen: 4.82

Stier: 5.10

No of shafts

2

Machinery

2 HRCR, 4 rectangular boilers

Power, h. p.

Schorpionen: 2225

Stier: 2260

Max speed, kts

Schorpionen: 13

Stier: 12.5

Fuel, t

Schorpionen: coal 246

Stier: coal 197

Endurance, nm(kts)1030(10)
Armour, mm

iron; side: 152, deck: 25 - 19, turret: 278 - 203, CT: 144

Armament

1 x 2 - 229/14 Armstrong 12.5-ton MLR

Complement

136



Standard scale images


<i>Schorpionen </i>1868
Schorpionen 1868


Graphics


<i>Stier</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Stier Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Small turret rams originally rigged with two masts. The upper deck was 1.1m above water with fore and aft superstructures.

Ship protection

Armoured 152mm belt protected full ship length. Turret had 278-203mm sides.

Modernizations

1880s, both: - 1 x 2 - 229/14; + 1 x 1 283/20 Krupp No.1, 5 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss

Naval service

No significant events.
