Piet Hein Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Evertsen		81	De Schelde, Vlissingen	1893	29.9.1894	1.2.1896	stricken 1913
Piet Hein		169	Nederlandsche, Rotterdam	1893	16.8.1894	3.1.1896	discarded 1914
Kortenaer			Rijkswerf Amsterdam	1893	27.10.1894	17.12.1895	stricken 1920

Technical data

Displacement normal, t	3464
Displacement full, t
Length, m	86.2
Breadth, m	14.3
Draught, m	5.23 max
No of shafts	2
Machinery	2 VTE, 6 cylindrical boilers
Power, h. p.	4700
Max speed, kts	16
Fuel, t	coal 289
Endurance, nm(kts)	2800(9)
Armour, mm	steel; belt: 150 - 100, deck: 55, barbette: 240, CT: 240
Armament	1 x 2 - 209/32 Krupp No.2, 1 x 1 - 209/32 Krupp No.2, 2 x 1 - 149/32 Krupp No.1, 6 x 1 - 75/37 Krupp No.1, 8 x 1 - 37/20 Hotchkiss, 3 - 450 TT (2 beam, 1 aft)
Complement	263

Standard scale images

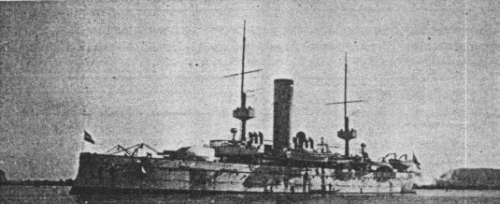

Graphics

Project history

Coast defence battleships with a complete waterline belt. Two of the 209mm were in a barbette forward and one in a shield aft, with the 149mm guns in shields amidships.

Ship protection

150(amidships)-100mm(ship ends) belt protected all hull length, it was connected with 55mm deck by 55mm slopes, the deck has turtleback form at ship ends. Fwd barbette with 2 209mm guns had 240mm protection, beam barbettes with 149mm guns had 75mm armour, aft 209mm gun was protected by 150mm shield.

Modernizations

None.

Naval service

No significant events.
