ADDER monitors (1871-1878)





Luipaard Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Adder     Fijenoord, Schiedam 31.12.1870 28.9.1871 24.10.1873 lost 5.7.1882
Haai   79 Fijenoord, Schiedam 1870 1871 1872 stricken 1905
Hyena     Rijkswerf Amsterdam 1869 1870 1871 stricken 1905
Luipaard   96 Fijenoord, Schiedam 1875 28.8.1877 1878 stricken 1907
Panter     Rijkswerf, Amsterdam 1869 1870 1871 stricken 1906
Wesp     Rijkswerf, Amsterdam 1870 1871 1872 stricken 1906


Technical data


Displacement normal, t

1555

Luipaard: 1585

Displacement full, t



Length, m

58.6 - 59.6

Breadth, m

13.4

Draught, m

2.97 max

No of shafts

2

Machinery

2 HC, 4 rectangular boilers

Power, h. p.

560 - 740

Max speed, kts

7 - 8

Fuel, t

coal 93

Endurance, nm(kts)600(7)
Armour, mm

iron; side: 140, deck: 25, turret: 285 - 203, CT: 140

Armament

1 x 2 - 229/14 Armstrong 12.5-ton MLR

Luipaard: 1 x 1 - 283/20 Krupp No.1

Complement

117



Standard scale images


<i>Adder </i>1870
Adder 1870


Graphics

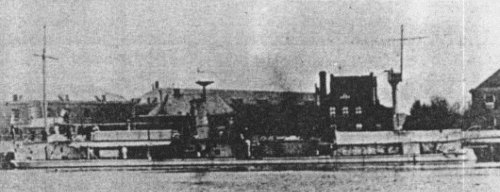

<i>Luipaard</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Luipaard Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Low freeboard monitors with ram bows and small aft superstructure.

Ship protection

Armoured 140mm belt protected full ship length. Turret had 285-203mm sides.

Modernizations

1884, Wesp; 1887, Hyena; 1888, Panter; 1889, Haai: - 1 x 2 - 229/14; + 1 x 1 - 283/20 Krupp No.1, 2 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss

early 1880s, Luipaard: + 2 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss

Naval service

Adder was lost with all hands by unknown cause 5.7.1882 off Scheveningen.
