LT. GEN. JEROMBOAM DIMO HAMAAMBO patrol ship (1955/2004)

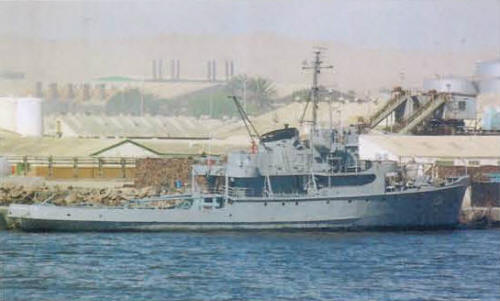

Lt. Gen. Jeromboam Dimo Hamaambo 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lt. Gen. Jeromboam Dimo Hamaambo (ex-Purus) | C11 | NV Scheepswerf & Machinenfabriek, Debiesboch, Netherlands | 20.11.1953 | 6.11.1954 | 4.7.1955 // 25.6.2004 | retired 8.2012 |
Technical data
| Displacement standard, t | 911 |
|---|---|
| Displacement full, t | 960 |
| Length, m | 55.7 |
| Breadth, m | 9.55 |
| Draught, m | 3.60 max |
| No of shafts | 2 |
| Machinery | 2 Sulzer 6TD36 diesels |
| Power, h. p. | 2160 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil 135 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 76/50 Mk 26, 4 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca radar |
| Complement | 70 |
Standard scale images
Lt. Gen. Jeromboam Dimo Hamaambo 2005
Graphics
Lt. Gen. Jeromboam Dimo Hamaambo 2006
Project history
Former Brazilian Imperial Marinheiro class patrol ship, stricken by Brazilian Navy in 2002.
Modernizations
None.
Naval service
No significant events.
