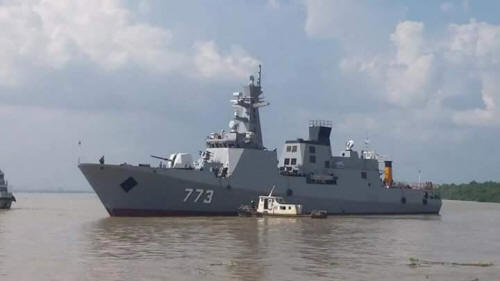

Tabinshweti 2016

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
တပင်ရွှေထီး [Tabinshweti]	773		China // Sinmalaik, Yangon		11/2014	12.2016	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	1200
Length, m	79.0
Breadth, m
Draught, m
No of shafts	2
Machinery	2 MAN-Pielstick 16PA6 diesels
Power, h. p.	14100
Max speed, kts	~30
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	2 x 2 C-802 SSM (4 YJ-83), 1 x 1 - 76/62 OTO-Melara Compact SR (North Korean version), 1 x 6 - 30/54 NG-18, 2 x 1 - 14.5/89, 1 helicopter (Z-9)
Electronic equipment	air search, surface search, 2x nav., type 347 radars, FLIR e/o system, 2x ECM suites
Complement

Graphics

Project history

Enlarged Anawratha with helicopter hangar and stealth architecture.

Modernizations

None.

Naval service

No significant events.
