YAN SIT AUNG large patrol boats (1964-1987/1991-1993)

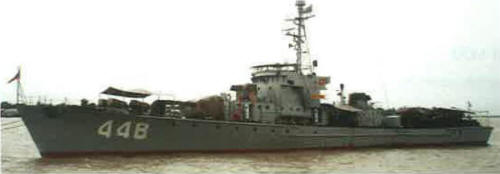

Yan Win Aung 1993

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
ရန်သိတ္ာာင် [Yan Sit Aung] 441   China     1964-82 // 1.1991 destroyed 4.5.2008
ရန်ထက်အောင် [Yan Htet Aung] 442   China     1964-82 // 1.1991 in service (2019)
ရန်ငြိမ်းအောင် [Yan Nyein Aung] 443   China     1964-82 // 1.1991 in service (2019)
ရန်ခွင်းအောင် [Yan Khwin Aung] 444   China     1964-82 // 1.1991 in service (2019)
ရန်မင်းအောင် [Yan Min Aung] 445   China     1964-82 // 1.1991 in service (2019)
ရန်ရဲအောင် [Yan Ye Aung] 446   China     1964-82 // 1.1991 in service (2019)
ရန်ပန်းအောင် [Yan Pang Aung] 447   China     1964-82 // mid-1993 in service (2019)
ရန်ဝင်းအောင် [Yan Win Aung] 448   China     1964-82 // mid-1993 in service (2019)
ရန်အေးအောင် [Yan Aye Aung] 449   China     1964-82 // mid-1993 in service (2019)
ရန်ဇွဲအောင် [Yan Zwe Aung] 450   China     1964-82 // mid-1993 in service (2019)


Technical data


Displacement standard, t

375

Displacement full, t

400

Length, m

58.8

Breadth, m

7.20

Draught, m2.20
No of shafts4
Machinery4 9D diesels
Power, h. p.

8800

Max speed, kts30
Fuel, tdiesel oil
Endurance, nm(kts)

2000(14)

Armament

2 x 2 - 57/62 type 66, 2 x 2 - 25/82 type 61M, 2 x 2 - 14.5/93, 4 x 5 type 81 ASWRL, 2 DCT, 2 DCR

Electronic equipment

Pathfinder, type 351 radars, Tamir-11 sonar

Complement70


Standard scale images


<i>Yan Sit Aung </i>2000
Yan Sit Aung 2000


Graphics


<i>Yan Win Aung </i>1993
Yan Win Aung 1993


Project history

Former Chinese type 037 submarine chasers.

Modernizations

None.

Naval service

Yan Sit Aung was destroyed by cyclone Nargis 4.5.2008.
