LCU1626 utility landing craft (1967-2013)

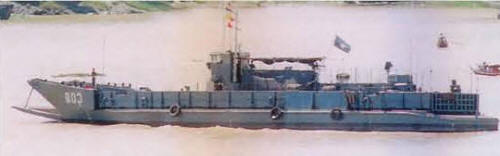

Aiyar Lulin 1990
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| LCU1626, 1980- အယရ္လုလိန္ [Aiyar Lulin] | 603 | Southern SB, Rangoon | 1963 | 6.1967 | in service (2019) | ||
| 1611 | Yangon N Yd | 2005 | in service (2019) | ||||
| 1612 | Yangon N Yd | 2013 | in service (2019) | ||||
| 1613 | Yangon N Yd | 2013 | in service (2019) |
Technical data
| Displacement standard, t | 192 |
|---|---|
| Displacement full, t | 342 |
| Length, m | 38.9 wl 41.3 oa |
| Breadth, m | 9.00 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 4 General Motors Detroit Diesel 6-71 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil 10 |
| Endurance, nm(kts) | 1000(8) |
| Armament | 603: 2 x 1 - 20/70 Mk 10 1612: 1 x 1 - 12.7/90 |
| Military load | 4 medium or 3 heavy tanks or 170 t of cargo or 400 troops |
| Electronic equipment | 1612: radar |
| Complement | 14 |
Standard scale images
Aiyar Lulin 1985
Graphics
Aiyar Lulin 1990
Project history
USN LCU, built in Rangoon under MDAP. Used as transport. Other ships were built in Myanmar as copies.
Modernizations
None.
Naval service
No significant events.
