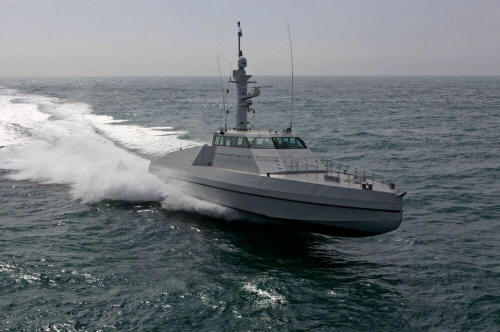

HSI32 patrol boats (2016)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| i | CMN, Cherbourg, France | 17.3.2015 | 1.2.2016 | in service (2020) | |||
| ii | CMN, Cherbourg, France | 1.2.2016 | in service (2020) | ||||
| iii | CMN, Cherbourg, France | 1.2.2016 | in service (2020) | ||||
| iv | CMN, Cherbourg, France | 2016 | in service (2020) | ||||
| v | CMN, Cherbourg, France | 2016 | in service (2020) | ||||
| vi | CMN, Cherbourg, France | 2016 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 132 |
| Length, m | 32.2 |
| Breadth, m | 7.00 |
| Draught, m | 1.40 |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 16V2000 M93 diesels |
| Power, h. p. | |
| Max speed, kts | 45 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | 1 x 1 - 20/90 Narwhal, 2 x 1 - 12.7/90 |
| Electronic equipment | radar, e/o system |
| Complement | 12 |
Graphics
Project history
HSI32 design. Three were ordered in 2013 and three in 2015. Aluminium construction. 4.8m fast launch is carried aft.
Modernizations
None.
Naval service
No significant events.
