SULTAN MOULAY ISMAIL frigates (2012)

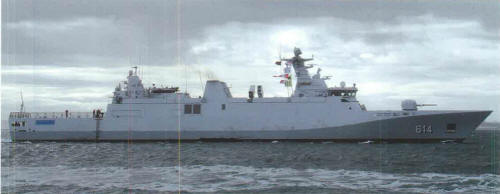

Sultan Moulay Ismael 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| سلطان مولاي إسماعيل [Sultan Moulay Ismail] | 614 | Schelde SB, Vlissingen, Netherlands | 24.3.2009 | 2.2.2011 | 22.3.2012 | in service (2019) | |
| علال بن عبدلله [Allal Ben Abdelah] | 615 | Schelde SB, Vlissingen, Netherlands | 9/2009 | 8/2011 | 8.9.2012 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 2075 |
| Length, m | 90.7 pp 97.9 oa |
| Breadth, m | 13.0 |
| Draught, m | 4.00 |
| No of shafts | 2 |
| Machinery | 2 MAN-Pielstick 20PA6BSTC diesels |
| Power, h. p. | 22030 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(18) |
| Armament | 2 x 2 MM40 Exocet Block III SSM (4 MM40 Block III), 1 x 12 MICA SAM (VLS, 12 MICA), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 F-15B, 2 x 3 -324 B-515 TT (6 MU-90), 1 helicopter (Panther AS-565) |
| Electronic equipment | SMART-S Mk 2, 3x Sperry BridgeMaster E, LIROD Mk 2 radars, Kingklip sonar, Vigile 100, Scorpion ECM suites, 2x SKWS decoy RL, TACTICOS CCS |
| Complement | 91 |
Standard scale images
Sultn Moulay Ismail 2015
Graphics
Sultan Moulay Ismael 2013
Project history
Dutch SIGMA 9813 design (Ship Integrated Geometrical Modularity Approach), ordered in 2008.
Modernizations
None.
Naval service
No significant events.
