Raïs Britel 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
رايس برغش [Raïs Bargach]	318		Lorient Naval Industries, Lanester, France		9.10.1995	14.12.1995	in service (2019)

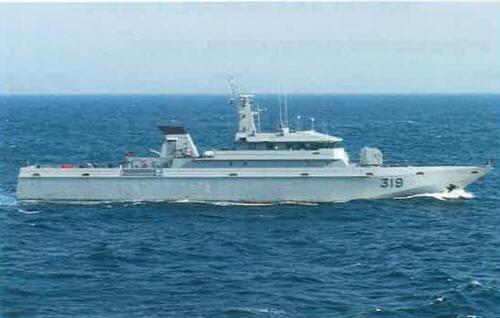

رئس برطل [Raïs Britel]	319		Lorient Naval Industries, Lanester, France		19.3.1996	14.5.1996	in service (2019)
رئس شرقاوي [Raïs Charkaoui]	320		Lorient Naval Industries, Lanester, France		26.9.1996	15.12.1996	in service (2019)
رئس مانعين [Raïs Maaninou]	321		Lorient Naval Industries, Lanester, France		7.3.1997	21.5.1997	in service (2019)
رئس المنستيري [Raïs Al Mounastiri]	322		Lorient Naval Industries, Lanester, France		15.10.1997	18.12.1997	in service (2019)

Technical data

Displacement standard, t	520
Displacement full, t	600
Length, m	59.0 pp 64.0 oa
Breadth, m	11.4
Draught, m	3.00 propellers
No of shafts	2
Machinery	2 Wärtsilä-Nohab 16V25 diesels / 2 Leroy-Somer electric motors
Power, h. p.	10000 / 320
Max speed, kts	25 / 8
Fuel, t	diesel oil
Endurance, nm(kts)	4000(12)
Armament	318, 322: 2 x 1 - 20/90 F2 319-321: 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 F2
Electronic equipment	2x Decca 2090 BrideMaster-E radars
Complement	46

Standard scale images

Graphics

Project history

French OPV64 design. Intended for fishery patrol duties. Have a stern recovery/deployment ramp for internally stowed 7.5m 35kts inspection RIB and firefighting water monitor. All received armament after delivery.

Modernizations

late 2010s, all: - 2 x 1 - 20/90; + 2 x 2 - 14.5/93

Naval service

No significant events.
