NAVYPEDIA


Mohammad VI 2014

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
محمد السادس [Mohammed VI]	701		DCNS, Lorient, France	5/2010	14.9.2011	30.1.2014	in service (2019)

Technical data

Displacement standard, t	5200
Displacement full, t	6000
Length, m	129.0 pp 142.0 oa
Breadth, m	18.0 wl 20.0 oa
Draught, m	6.00
No of shafts	2
Machinery	CODLOG: 4 MTU 16V4000 diesel-generators, 2 Jeumont electric motors / 1 General Electric-Avio LM2500+G4 gas turbine
Power, h. p.	6000 / 43520
Max speed, kts	27
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	6000(15)
Armament	2 x 4 MM40 Exocet Block III SSM (8 MM40 Block III), 2 x 8 Sylver A43 SAM (VLS, 16 Aster 15), 1 x 1 - 76/62 OTO-Melara Compact SR, 4 x 1 - 12.7/90, 2 x 2 -324 B-515 TT (6 MU-90), 1 helicopter (Panther AS-565)
Electronic equipment	3x nav., MFR Herakles, NA-25XP radars, e/o system, MFS-4110, CAPTAS-4249 sonars, Sigen, FIGN ECM suites, 2x NGDS, 2x WASS decoy RL, SLAT torpedo countermeasures system, SETIS CCS
Complement	108

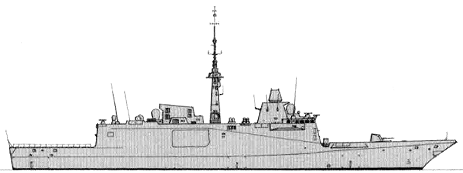

Standard scale images

Graphics

Project history

French-Italian FREMM design (Frégates Européennes Multí-Mission), differs from French ships by absence of Sylver A70 VLS for launch SCALP land-attack missiles.

Modernizations

None.

Naval service

No significant events.
