OKBA fast attack craft (gun) (1976-1977)
Triki 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| عقبة [Okba] | 33, later- 302 | SFCN, Villeneuve-la-Garenne | 10.10.1975 | 16.12.1976 | in service (2019) | ||
| طريقي [Triki] | 34, later- 303 | SFCN, Villeneuve-la-Garenne | 2.2.1976 | 12.7.1977 | in service (2019) |
Technical data
| Displacement standard, t | 370 |
|---|---|
| Displacement full, t | 440 |
| Length, m | 54.0 pp 57.0 oa |
| Breadth, m | 7.60 |
| Draught, m | 2.50 |
| No of shafts | 4 |
| Machinery | 4 SACM AGO 195V16 SZSHR diesels |
| Power, h. p. | 11040 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(16) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | Vega, Decca 1226 radars, 2x Panda e/o systems |
| Complement | 53 |
Standard scale images

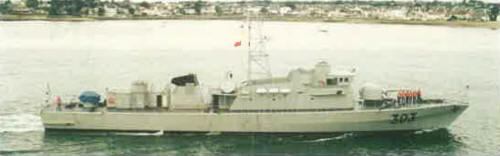

Okba 2010
Graphics
Triki 2003
Project history
French PR72 design.
Modernizations
2003, Triki; 2004, Okba: two shafts were removed, diesels were replaced by 2 Wärtsilä UD33 V16 diesels (5520hp, 20kts); - Vega, Decca 1226 radars; + 2 x 1 - 12.7/90, 2x Furuno nav. radars
Naval service
No significant events.
