LIEUTENANT RIFFI large patrol craft (1964)
Lieutenant Riffi
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ليوتننت رفي [Lieutenant Riffi] | 32 | CMN, Cherbourg, France | 5.1963 | 1.3.1964 | 5.1964 | discarded 1990 |
Technical data
| Displacement standard, t | 325 |
|---|---|
| Displacement full, t | 400 |
| Length, m | 53.1 |
| Breadth, m | 7.30 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick diesels |
| Power, h. p. | 3240 |
| Max speed, kts | 19 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 76/50 Mk 26, 2 x 1 - 40/60 Mk 3, 2 x 1 - 120 ASW mortars |
| Electronic equipment | Decca radar, QCU-2 sonar |
| Complement | 49 |
Standard scale images

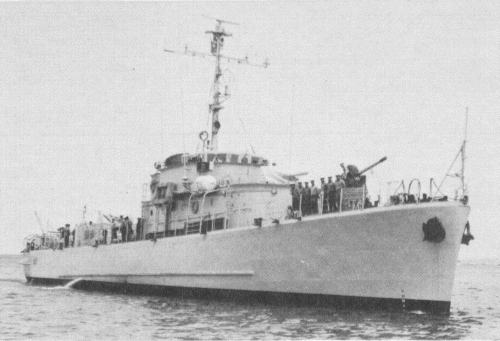

Lieutenant Riffi 1965
Graphics
Lieutenant Riffi
Project history
Modified French Le Fougueux class large patrol craft.
Modernizations
1982: armament consisted of only 3 x 1 - 40/60 Mk 3
Naval service
No significant events.
