NICHOLAS BRAVO gunboats (1904)





Nicholas Bravo

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Nicholas Bravo     Odero, Sestri Ponente, Italy   1903 1904 stricken 1945
Morales, 1917- Blanquet     Odero, Sestri Ponente, Italy   1903 1904 stricken 1924


Technical data


Displacement normal, t

1227

Displacement full, t1493
Length, m

73.8

Breadth, m

10.4

Draught, m

2.97

No of shafts

2

Machinery

2 VTE, Blechynden boilers

Power, h. p.

2565

Max speed, kts

17

Fuel, tcoal 200
Endurance, nm(kts)



Armament

2 x 1 - 102/40 Bethlehem, 6 x 1 - 57/40 Driggs-Schroeder, 1 - 356 TT (bow)

Complement

116



Standard scale images


<i>Nicholas Bravo </i>1914
Nicholas Bravo 1914


Graphics

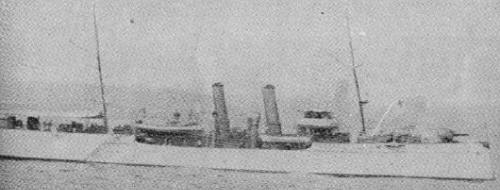

<i>Nicholas Bravo</i>
Nicholas Bravo


Project history

Steel-hulled gunboats with ram bow, two masts and funnels and raised forecastle and poop.

Modernizations

1925-1926, Nicholas Bravo: boilers were converted to oil firing.

Naval service

No significant events.
