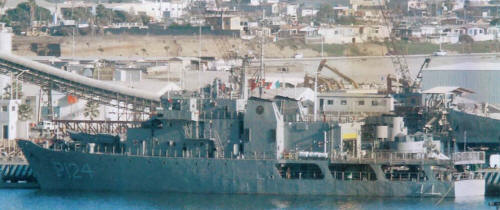

Carlos Castillo Bretón 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Cadete Virgilio Uribe Robles, 1993- Virgilio Uribe	GH01, 1992- C11, 2001- P121		Bazán, Cadiz, Spain	1.7.1981	13.12.1981	10.9.1982	stricken 2013
Teniente José Azueta Abad, 1993- José Azueta	GH02, 1992- C12, 2001- P122		Bazán, Cadiz, Spain	7.9.1981	12.12.1981	23.9.1982	in service (2018)
Capitán de Fragata Pedro Sainz de Baranda Borreyo, 1993- Pedro Sainz de Baranda	GH03, 1992- C13, 2001- P123		Bazán, Cadiz, Spain	22.10.1981	29.1.1982	1.5.1983	in service (2018)
Comodoro Carlos Castillo Bretón Barrero, 1993- Carlos Castillo Bretón	GH04, 1992- C14, 2001- P124		Bazán, Cadiz, Spain	11.11.1981	26.2.1982	24.2.1983	in service (2018)
Vice Almirante Othón P. Blanco Nuñez de Caceres, 1993- Othón P. Blanco	GH05, 1992- C15, 2001- P125		Bazán, Cadiz, Spain	18.12.1981	26.3.1982	24.2.1983	in service (2018)
Contra Almirante Ángel Ortiz Monasterio, 1993- Ángel Ortiz Monasterio	GH06, 1992- C16, 2001- P126		Bazán, Cadiz, Spain	30.12.1981	23.4.1982	24.2.1983	in service (2018)

Technical data

Displacement standard, t	767
Displacement full, t	990
Length, m	63.0 pp 67.0 oa
Breadth, m	10.5
Draught, m	3.50 max
No of shafts	2
Machinery	2 MTU 16V956 TB91 diesels
Power, h. p.	9000
Max speed, kts	21.5
Fuel, t	diesel oil
Endurance, nm(kts)	5000(18)
Armament	1 x 1 - 40/70 Bofors 564, 1 helicopter (BO-105CB)
Electronic equipment	2x Decca AC1226 radars, Naja e/o system
Complement	52

Standard scale images

Graphics

Project history

Halcon class, ordered in 1980. Used for EEZ patrol

Modernizations

None.

Naval service

No significant events.
