G30 submarine chasers (1942-1945/1952)

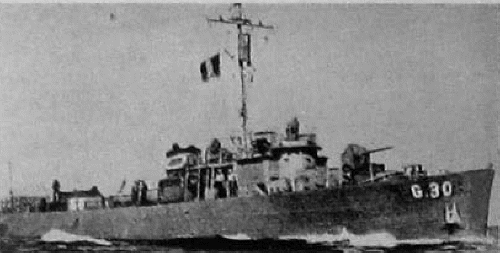

G30 1953
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| G30 (ex-PC820) | G30 | Albina, Portland, USA | 5.1943 | 2.8.1943 | 9.1943 // 1952 | discarded 1966 | |
| G31 (ex-PC608) | G31 | Brown, Houston, USA | 1.1942 | 16.5.1942 | 8.1942 // 1952 | discarded 1964 | |
| G32 (ex-PC614) | G32 | Gibbs Gas Engine, Jacksonville, USA | 7.1942 | 23.12.1942 | 7.1943 // 1952 | discarded 1964 | |
| G33 (ex-PC813) | G33 | Commercial Iron Wks, Portland, USA | 12.1943 | 27.3.1944 | 5.1945 // 1952 | discarded 1966 | |
| G34 (ex-PC794) | G34 | Commercial Iron Wks, Portland, USA | 4.1943 | 29.5.1943 | 5.1944 // 1952 | discarded 1964 | |
| G35 (ex-PC824) | G35 | Leatham D. Smith SB, Sturgeon Bay, USA | 3.1944 | 10.5.1944 | 8.1944 // 1952 | discarded 1966 | |
| G36 (ex-PC1224) | G36 | Penn-Jersey, Camden, USA | 8.1943 | 9.7.1944 | 1.1945 // 1952 | discarded 1964 | |
| G37 (ex-PC819) | G37 | Albina, Portland, USA | 3.1943 | 19.5.1943 | 8.1943 // 1952 | discarded 1966 | |
| G38 (ex-PC1210) | G38 | Consolidated SB, New York, USA | 9.1943 | 30.10.1943 | 5.1944 // 1952 | discarded 1971 |
Technical data
| Displacement standard, t | 280 - 414 |
|---|---|
| Displacement full, t | 330 - 463 |
| Length, m | 51.8 wl 52.9 oa |
| Breadth, m | 7.06 |
| Draught, m | 2.36 - 3.30 full load |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2880 |
| Max speed, kts | 19 - 21 |
| Fuel, t | diesel oil 49 |
| Endurance, nm(kts) | 3000 (12) - 4800 (12) |
| Armament | 1 x 1 - 76/50 Mk 21, 1 x 1 - 40/60 Mk 3, 5 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR |
| Electronic equipment | SF or SO or SU radar, QHA sonar |
| Complement | 59 - 65 |
Standard scale images
G30 1965
Graphics
G30 1953
Project history
Former USN PC class patrol craft.
Modernizations
None.
Naval service
No significant events.
1953
