ISLA CORONADO fast attack craft (1993-1994)
Isla Coronado 2005
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P51 Isla Coronado, 2001- P1201 Isla Coronado P52 Isla Lobos, 2001- P1202 Isla Lobos P53 Isla Guadalupe, 2001- P1203 Isla Guadalupe P54 Isla Cozumel, 2001- P1204 Isla Cozumel |
Trinity-Equitable, New Orleans, USA: P51-54 |
1993: P51, 52 1994: P53, 54 |
None |
None |
2013: P1201-1204 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 52 |
| Length, m | 25.0 |
| Breadth, m | 5.48 |
| Draught, m | 1.33 |
| No of shafts | 3 outdrives with surface-piercing propellers |
| Machinery | 3 General Motors 16V92TA diesels |
| Power, h. p. | 4350 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil 7 |
| Endurance, nm(kts) | 1200(30) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | SPS-69 radar |
| Complement | 9 |
Graphics

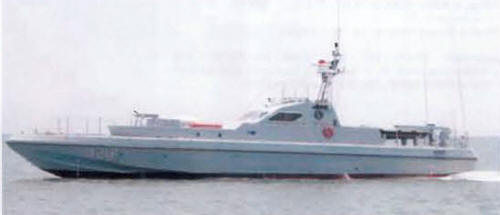

Isla Coronado 2005
Project history
Specially built antidrug interceptors. Kevlar-reinforced GRP hull.
Modernizations
None.
Naval service
No significant events.
