ACUARIO patrol boats (2004)

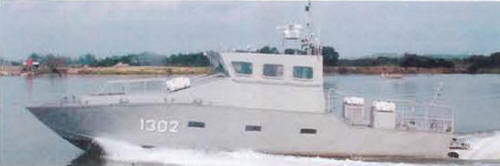

Águila 2005
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PI1301 Acuario PI1302 Águila PI1303 Aries PI1304 Auriga PI1305 Cáncer PI1306 Capricorno PI1307 Centauro PI1308 Gémini |
Astimar, Coatzacualcos: PI1301-1308 |
2004: PI1301-1308 |
None |
None |
in service (2019): PI1301-1308 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 19 |
| Length, m | 15.9 |
| Breadth, m | 3.80 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar 3406E diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 47 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 240(30) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Bridgemaster E radar |
| Complement | 4 |
Graphics
Águila 2005
Project history
Modified version of Stridsbåt 90H design. 1307 and 1308 have different silhouette.
Modernizations
None.
Naval service
No significant events.
