OBSERVER patrol boat (1997/2001)
Observer 2005
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
71 Observer (ex-C39) |
Anderso Marine, Goa, India: 71 |
1997 // 2001: 71 |
none |
none |
in service (2020): 71 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 49 |
| Length, m | 18.0 pp 20.8 oa |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 3 waterjets |
| Machinery | 2 Deutz-MWM TBD234 V12 diesels + 1 Deutz-MWM TBD234 V8 diesel |
| Power, h. p. | 1650+550= 2200 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(15) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 10 |
Graphics

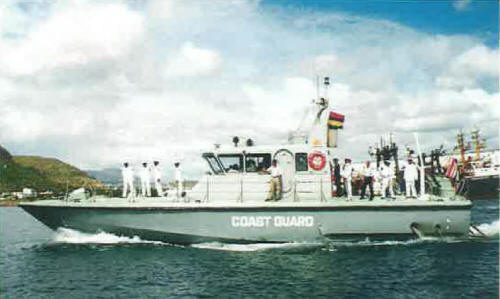

Observer 2005
Project history
Former Indian Coast Guard type P-2000 patrol boat. GRP hull.
Modernizations
None
Naval service
No significant events.
