ARGUIN patrol ship (2000)

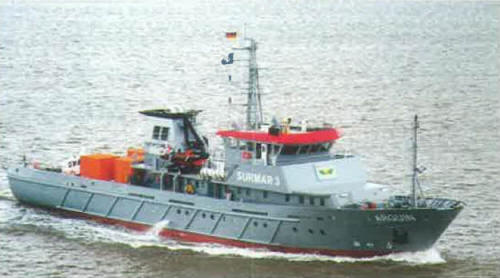

Arguin 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| أرجون [Arguin] | Yantar', Kaliningrad, Russia // Fassmer, Berne/Motzen, Germany | 17.7.2000 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1000 |
| Length, m | 48.0 pp 54.5 oa |
| Breadth, m | 10.9 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 MaK 6M20 diesels |
| Power, h. p. | 2775 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 15000(11) |
| Armament | small arms |
| Electronic equipment | 2x radars |
| Complement | 13 + 19 passengers |
Standard scale images
Arguin 2010
Graphics
Arguin 2000
Project history
Ordered in 1998, hull was subcontracted to Yantar'. Has 9.8m inspection launch, launched via stern ramp.
Modernizations
None.
Naval service
No significant events.
