TA TUNG river armoured motor gunboats (1933)
Ta Tung 1936
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
大同 [Ta Tung] 李敏 [Li Min] |
Mitsubishi, Kobe or Yokohama, Japan: Ta Tung, Li Min |
1933: Ta Tung, Li Min |
Ta Tung (22.8.1945 Soviet СК-265 [SK-265]), Li Min (22.8.1945 Soviet СК-266 [SK-266]) |
none |
none |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 30.5 |
| Breadth, m | 4.88 |
| Draught, m | 0.76 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 240 |
| Max speed, kts | 10.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 57/40 Hotchkiss, 3 x 1 - 7.7/80 |
| Complement | 20 |
Graphics

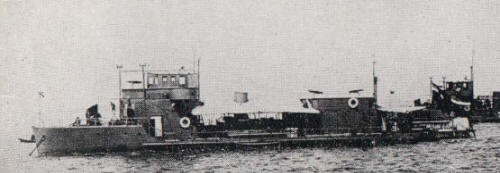

Ta Tung 1936
Project history
Built by Mitsibishi in Kobe or Yokohama, launched 27.6.1933 and assembled by Kawasaki in Harbin the same year. Japanese names were Daido and Rinni.
Modernizations
None.
Naval service
No significant events.
